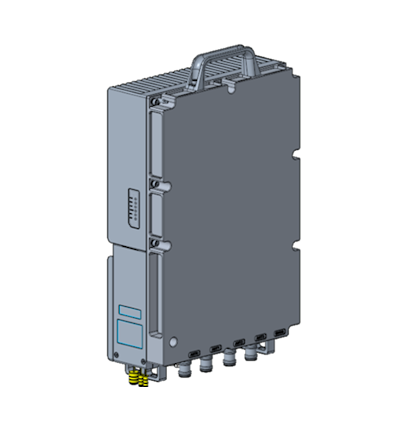

The high-power R6214 adopts a carrier grade integrated compact outdoor RF unit structure design, which can be combined with baseband units B5120 or B5132 to form a distributed outdoor 4G/5G base station system, providing operators and industry users with a cost-effective and high-performance 4G/5G wireless network coverage solution.

Multi frequency band and high-power design

R6214 supports FDD or TDD duplex mode, and 5G NR N41/ N79/ N3/ N28 frequency bands, LTE B1/ B3/ B7/ B8/ B20/ B34/ B38/ B40/ frequency bands, etc. R6214 supports 4T4R four channels, with a single channel transmission RF power of over 40W.

Multiple bandwidths that can be flexibly configured

R6214 supports multiple bandwidths including LTE 5/ 10/ 15/ 20MHz, 5G NR 20/ 30/ 40/ 60/ 80/ 100MHz, and can be flexibly configured according to spectrum resource to improve spectrum utilization efficiency.

Flexible networking methods

R6214 supports cascading of multiple R6214s, enabling star networking, chain networking, star and chain hybrid networking with baseband units B5120 or B5132.
