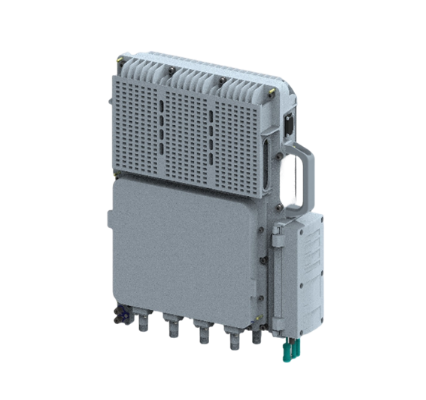

Based on the advanced ARM and SoC 5G RAN platform, the 5G baseband and RF functions together are integrated inside MetaBTS BS5514. BS5514 is suitable for outdoor 5G hotspot area coverage to provide cost-effective and high-performance 5G wireless access network solutions for industrial enterprise and technology park.

High integration design

Adopting integrated design, 5G baseband and RF functions are integrated internal BS5514 for lower power consumption and higher integration. BS5514 supports N77/N78/N79/N46 band and 100MHz carrier bandwidth.  The built-in 5G Core Network for BS5514 is optional.

Large capacity and high data throughput

BS5514 supports 4T4R quad-channel with MIMO technology. The RF power is over 4*5W and the peak data throughput can reach more than 1.5Gbps. BS5514 supports uplink dominant subframe rationing to further enhance the uplink data throughput.

All-IP structure and flexible deployment

BS5514 is on all-IP architecture and 10Gbps backhaul interface to support flexible deployment. BS5514 has the characteristics of compact structure design, green energy saving, easy installation and maintenance. The Ingress Protection level of BS5514 is IP67 and the operating temperature range is from -40℃ to +55℃, which makes BS5514 can work in all kinds of outdoor application environments.

Support built-in 5G Core Network

The built-in Core Network solution breaks through the traditional design concept of mobile networks, with a decentralized distributed network architecture that can effectively avoid the single point of failure of centralized Core Network leading to the paralysis of the entire network. Distributed network architecture supports endogenous security protection, which not only improves the robustness of the network, but also supports 5G extension coverage at the end of existing networks, achieving seamless super integration between 5G and existing networks. The built-in Core Network includes standard NE defined by 3GPP, such as AMF, SMF, UPF, etc.
